V6 PUMP ASSEMBLY (NR6) STD
![v6-pump-assembly-nr6-std](img/agriculture/v6-pump-assembly-nr6-std-01.jpg)
Product Description
Maffs Pumps pvt ltd has a wide range of Agriculture Submersible Pumps ,that suit various kinds of user requirements. The high lights of our pumps are compact ability, easy and quick installation and low maintenance. Our special features includes continues operation, greater efficiencies extremely quiet operation and high working pressure.

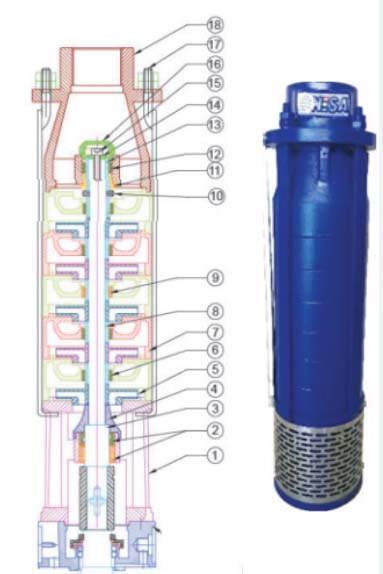

Parts with Material
![v6-pump-assembly-nr6-std](img/agriculture/v6-pump-assembly-nr6-std-02.jpg)
Sr. No. | Part's Name | Material |
1 | Intermediate Piece | C.I ( FG-200 ) As IS 210 |
2 | Intermediate Bush | Nitrite Rubber + L.T.B- 4 As IS 318 |
3 | Pump Shaft | S.S- 410 As PSI 410 |
4 | Sand Guard | C.I ( FG-200 ) As IS 210 |
5 | Impeller | S.S- 410 ( Moulded ) |
6 | RubberBush | Nitrile Rubber |
7 | stage casing | C.I ( FG-200 ) As IS 210 |
8 | Upper Sleeve | S.S - 410 As AISI 410 { with Hard Crome 100 Micron) |
9 | Bearing 8ush | L.T.8- 4 As IS 3T8 |
10 | Counter Washer | S.5- 410 As AISI 410 ( With Grinding |
11 | Counter Bearing Bush | LIB - 4 As I5 318 |
12 | Rubber Bush ( D.D.L) | Nitrile Rubber |
13 | Top Sleeve | S.5- 410 As AISI 410 (With Hard Crorrle ISO Micron |
14 | Top Washer | S.S- 410 As AISI 410 |
15 | Allen Balt | S.S- 410 As AISI 410 |
16 | Sdnd Seal Cap | H.D.P.E |
17 | Clamping Stud | M.S (Hardngd & Width-2OMU & Thicnkess-5MM) |
18 | N.R.V Body | C.I ( FG-200 ) As IS 210 |
![v6-pump-assembly-nr6-std](img/agriculture/v6-pump-assembly-nr6-std-03.jpg)

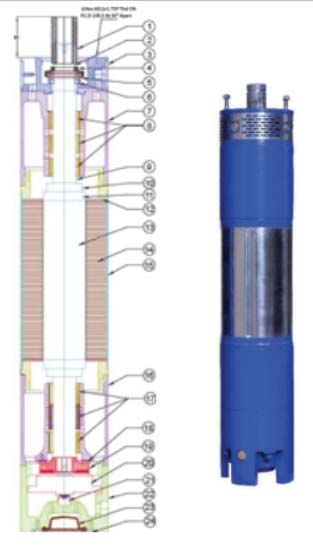

Sr. No. | Part's Name | Material |
1 | Couple | S.S-410 |
2 | Rotor Shaft | S.S-431 |
3 | Connecting Piece | C.I (FG-200) |
4 | Rubber 5eaI Cap | Nittrile Rubber |
5 | S.S Cap | S.S-202 |
6 | Oil seal | Nittrile Rubber + S.S. |
7 | Upper Brg Housing | C.I (FG-200) |
8 | Upper Brg Bush | L.T.B - 4 + Nittrile Rubber |
9 | Rotor | ----- |
10 | Balance Ring | Brass |
11 | Copper Ring | E.C Grade |
12 | Stud Ring | CRNO |
13 | Rotor Stamping | CRNO |
14 | Stator Stamping | S.S-202 (1% Ni-14) |
15 | Stator Tube | C.I (F.G-200) |
16 | Lower Brg Housing | L.T.B - 4 + Nittrile Rubber |
17 | Lower Brg Bush | Hylam Pad |
18 | Counter Bearing | Six Segment Carbon Pad |
19 | Thrust Pad | S.S- 410 |
20 | Thrust Bearing | Six Segment Carbon Pad |
21 | Rocker Support | S.S-410 |
22 | Motor Base | C.I (F.G-200) |
23 | P.C.D. Cup | Nittrile Rubber |
24 | Moror Base Cover | C.I (F.G-200) |
Model Types / Specification
![v6-pump-assembly-nr6-std](img/agriculture/v6-pump-assembly-nr6-std-04.jpg)
![v6-pump-assembly-nr6-std](img/agriculture/v6-pump-assembly-nr6-std-05.jpg)
Product Salient Features
Special Options

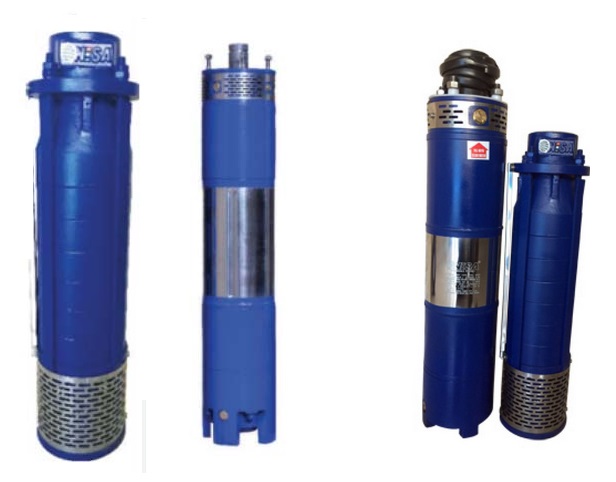

Product Images
![v6-pump-assembly-nr6-std](img/agriculture/v6-pump-assembly-nr6-std-07.jpg)

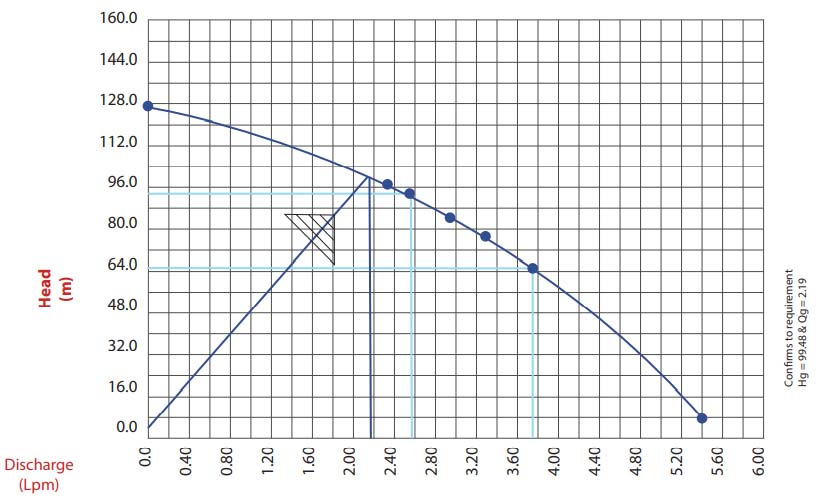

Head & Discharge Diagram
![v6-pump-assembly-nr6-std](img/agriculture/v6-pump-assembly-nr6-std-06.jpg)
