MONO 3 HP TO 10 HP
Product Description
We are an acclaimed name engaged in offering our precious clients a superior quality range of domestic MONO 3 HP TO 10 HP Pumps. This pump set is used in various irrigation purposes in commercial complexes for water supply & Boiler feed water treatment pump, high rise buildings and hotels. Our offered pump set is manufactured by our professionals using high grade raw material and advanced technology in compliance with the international quality standards. In addition to this, our provided pump set undergoes various tests under the supervision of quality controllers to ensure its flawlessness at the clients'' end. Clients can avail this domestic MONO 3 HP TO 10 HP pump set from us at market leading rates.

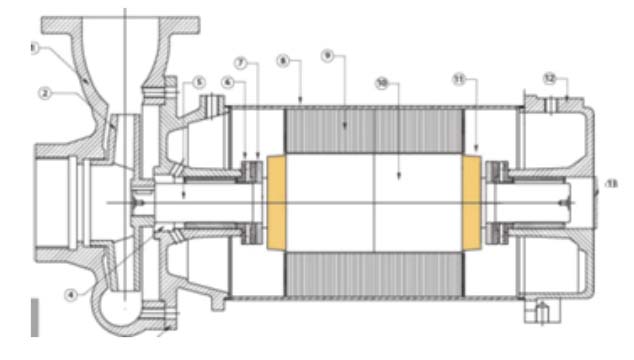

Parts with Material
| Sr. No | Part's Name | Material |
| 1 | Chamber | C.I ( FG-200 ) |
| 2 | Impeller | C.I ( FG-200 ) |
| 3 | Upper Brg Housing | C.I ( FG-200 ) |
| 4 | Oil Seal | Nitrite & S.S |
| 5 | Rotar | ------ |
| 6 | Counter Bearing Bush | L.T.8- 4 |
| 7 | Thrust Pad | C.I + Te on |
| 8 | Stator Tube | M.S/S.S. |
| 9 | Stator Stamping | CRNO |
| 10 | Rotor Stamping | CRNO |
| 11 | Alluminium Die Cast | E.C Grade |
| 12 | Lower Brg Housing | C.I ( FG-200 ) |
| 13 | Back Cover | C.I ( FG-200 ) |
Model Types / Specification
| MODEL | NHZ | |||
| TYPE | H.P | SUCTION/DELIVERY SIZE (MM) | DISCHARGE (LPM) | HEAD RANGE (MTR) |
| NHZ9HH | 3 | 65*50 | 590 to 360 | 5 to 22 |
| NHZ8LH | 3 | 65*65 | 766 t0 192 | 5 to 26 |
| NHZ8HH | 5 | 65*50 | 661 to 304 | 5 to 38 |
| NHZ8LH | 5 | 65*65 | 1024 to 496 | 5 to 30 |
| NHZ9HH | 6.5 | 65*50 | 541 to 351 | 5 to 38 |
| NHZ8LH | 6.5 | 65*65 | 1210 t0 676 | 5 to 28 |
| NHZ8HH | 7.5 | 65*50 | 649 to 490 | 5 to 38 |
| NHZ8LH | 7.5 | 65*65 | 730 to 540 | 5 to 32 |
| NHZ8LH | 7.5 | 80*80 | 1183 to 715 | 5 to 30 |
| METHOD OF STARTING | SP | DOL | ||
| RPM | 2850 | |||
Product Salient Features
Special Options

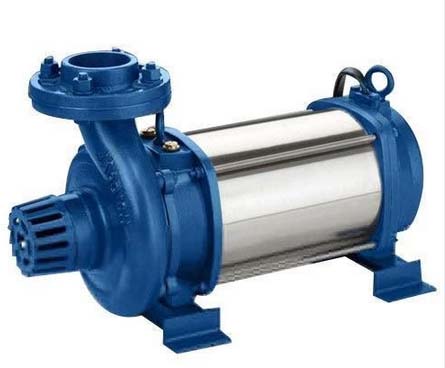

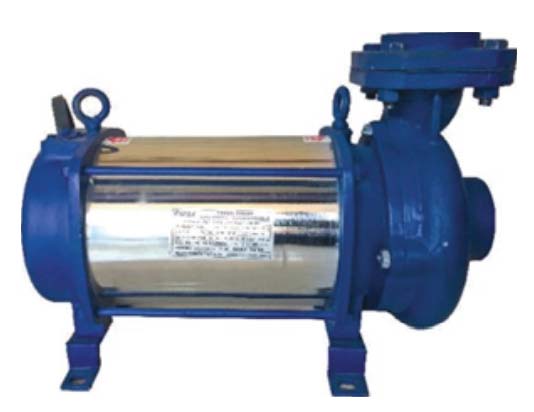

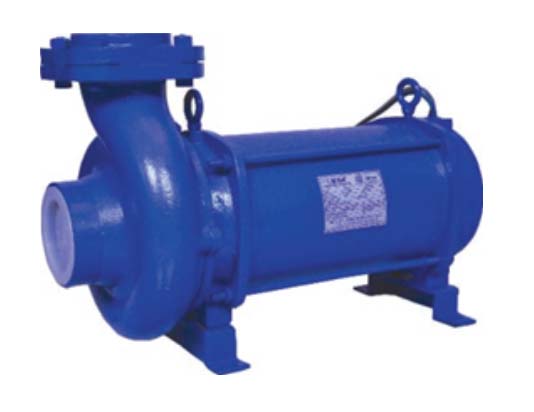

Product Images

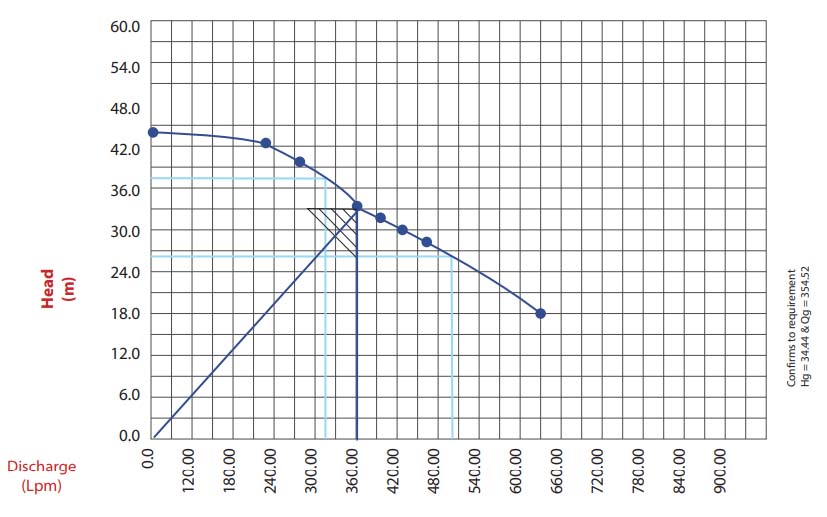

Head & Discharge Diagram
