Product Description

Maffs Pumps pvt ltd has a wide range of Agriculture Submersible Pumps ,that suit various kinds of user requirements. The high lights of our pumps are compact ability, easy and quick installation and low maintenance. Our special features includes continues operation, greater efficiencies extremely quiet operation and high working pressure.

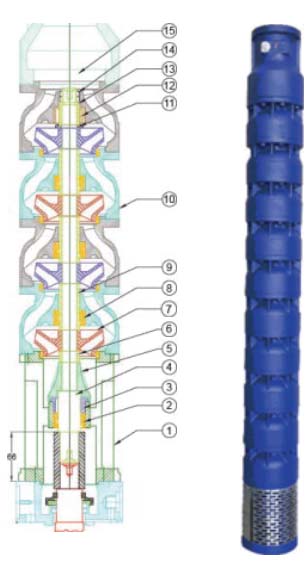

Parts with Material


v6-pump-assembly-nm6-std
Sr. No. Part's Name Material
1 Intermediate Piece   C.I ( FG-200 ) As IS 210
2 Intermediate Bush Nitrite
3 Intermediate Bush L.T.8- 4
4 Pump Shaft S.S- 410
5 Sand Guard C.I ( FG-200 )
6 Upper Sleeve S.S- 410
7 Impeller S.S- 410
8 Rubber Bush ( For Bowl ) Nitrite
9 5leeve S.S - 410
10 Stage Casing C.I ( FG-200 )
11 Top Washer S.5- 410
12 Top Bush  L.T.8- 4
13 Top Sleeve S.5- 410
14 Check Nut S.5- 410
15 N.R.V. Body C.I ( FG-200 )

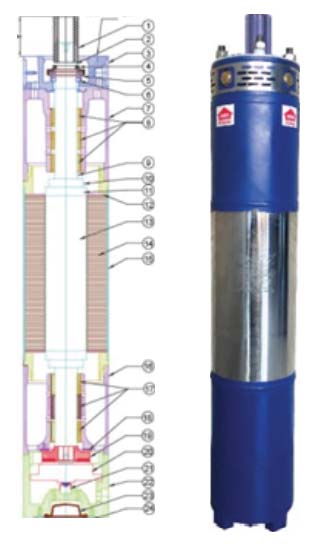

v6-pump-assembly-nm6-std
Sr. No. Part's Name Material
1 Couple S.S-410
2 Rotor Shaft S.S-431
3 Connecting Piece C.I (FG-200)
4 Rubber 5eaI Cap Nittrile Rubber
5 S.S Cap S.S-202
6 Oil seal Nittrile Rubber + S.S.
7 Upper Brg Housing C.I (FG-200)
8 Upper Brg Bush L.T.B - 4 + Nittrile Rubber
9 Rotor -----
10 Balance Ring Brass
11 Copper Ring  E.C Grade
12 Stud Ring M.S. Forged
13 Rotor Stamping CRNO
14 Stator Stamping CRNO
15 Stator Tube S.S-202 (1% Ni-14)
16 Lower Brg Housing C.I (F.G-200)
17 Lower Brg Bush L.T.B - 4 + Nittrile Rubber
18 Counter Bearing Hylam Pad
19 Thrust Pad S.S. + Carbon
20 Thrust Bearing Six Segment Carbon Pad
21 Rocker Support S.S-410
22 Motor Base C.I (F.G-200)
23 P.C.D. Cup Nittrile Rubber
24 Moror Base Cover C.I (F.G-200)

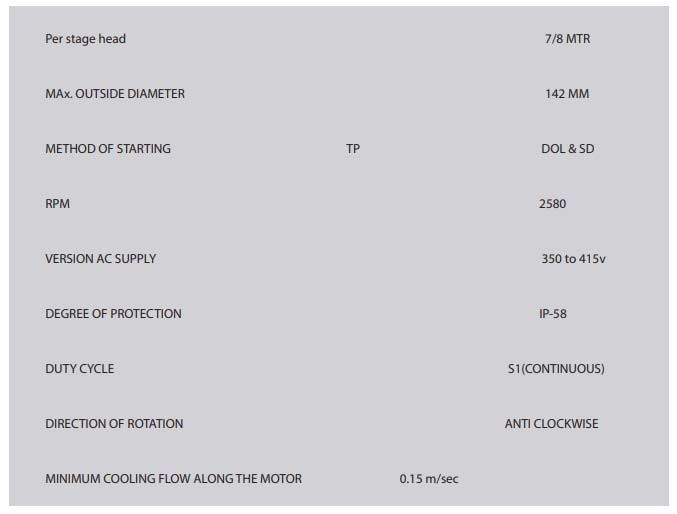

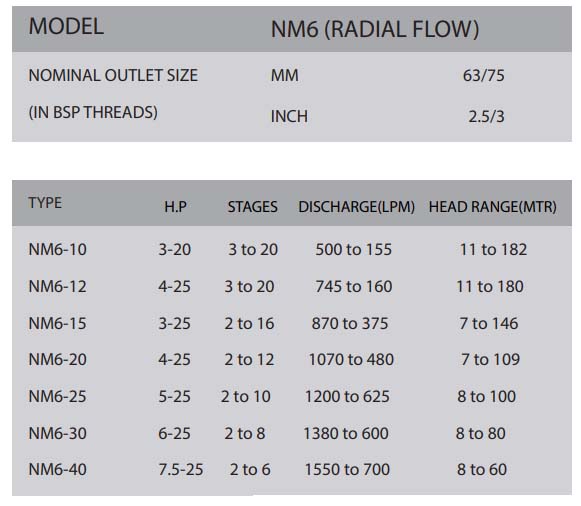

Model Types / Specification


v6-pump-assembly-nm6-std v6-pump-assembly-nm6-std

Product Salient Features


  • Confirm to IS 8034: 2002
  • Energy Efficient Pumpsets
  • Easy to Dismantle and Repair
  • Available from 0.5 to 5 HP in S.P and T.P
  • Wide Operating Voltage Range
  • Enhanced Durability
  • Trouble-free Operation
  • Less Power Consumption
  • Applications: Domestic, Industrial, Sprinklers, Agriculture, High Rise Buildings, Drip Irrigation
  • Special Options


  • Also available in NEMA standard.
  • Also available in single phase upto 6 HP

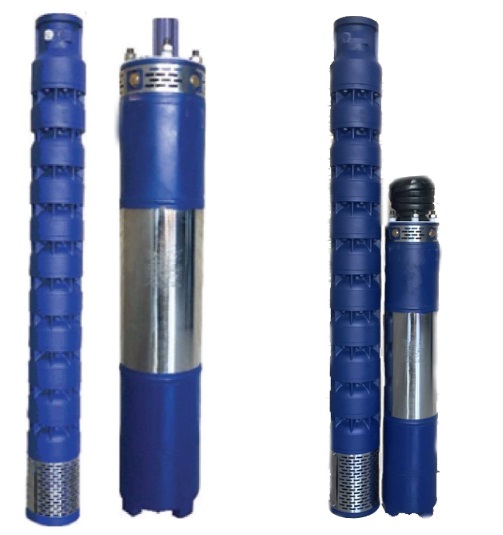

  • Product Images
