Product Description

Maffs Pumps pvt ltd has a wide range of Agriculture Submersible Pumps ,that suit various kinds of user requirements. The high lights of our pumps are compact ability, easy and quick installation and low maintenance. Our special features includes continues operation, greater efficiencies extremely quiet operation and high working pressure.

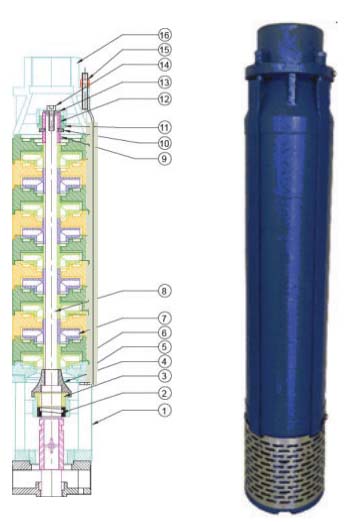

Parts with Material


v5-pump-assembly-nr5
Sr. No. Part's Name Material
1 Intermediate Piece C.I (FG-200)
2 Intermediate Bush Nittrile Rubber
3 Intermediate Bush L.T.B- 4
4 Sand Guard C I ( FG-200)
5 Intermediąte Plate C I ( FG-200)
6 Stage Casing C I ( FG-200)
7 Impeller S.S-410
8 Pump Shaft S.S-410
9 Upper Sleeve S.S-410
10 Counter Washer s.s- 410
11 Counter Bearing Bush L.T.B- 4
12 Top Sleeve S.S-410
13 Top Waşher S.S-410
14 Allen Bait S.S- 410
15 Clamping Stud M.S.
16 N.R.V. Body C I ( FG-200)

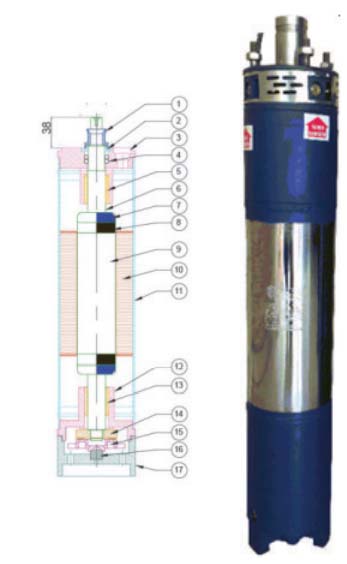

v5-pump-assembly-nr5
Sr. No. Part's Name Material
1 couple  S.S- 410
2 Roror Shaft S.S- 410
3 Connecng Piece C.I ( FG-200 )
4 Rubber Seal Cap Nitrile
5 5.S Cap S.S- 207
6 Oil Seal Nitrile  & S.S.
7 Upper Brg Housing C.I ( FG-200 )
8 Bearing Bush L.T.B- 4
9 Rotor -----
10 Balance Ring  C.I ( FG-200 )
11 Copper Ring E.C Grade
12 Stud ring M.S forged
13 Rotor Stamping CRNO
14 Stator Stamping CRNO
15 Stator Tube S.S- 202 {Ni - 14}
16 Lower Brg Housing C.I ( FG-200 )
17 Lower Brg Bush  L.T.B- 4
18 Thrust Pad S.S. +Teon
19 Thrust Bearing C.I. & S.S. {Fix Segment}
20 Rocker Support S.S- 410
21 Motor Base C.I ( FG-200 )
22 P..C.D. .Cup Nitrile
23 Motor Base Cover C.I ( FG-200 )

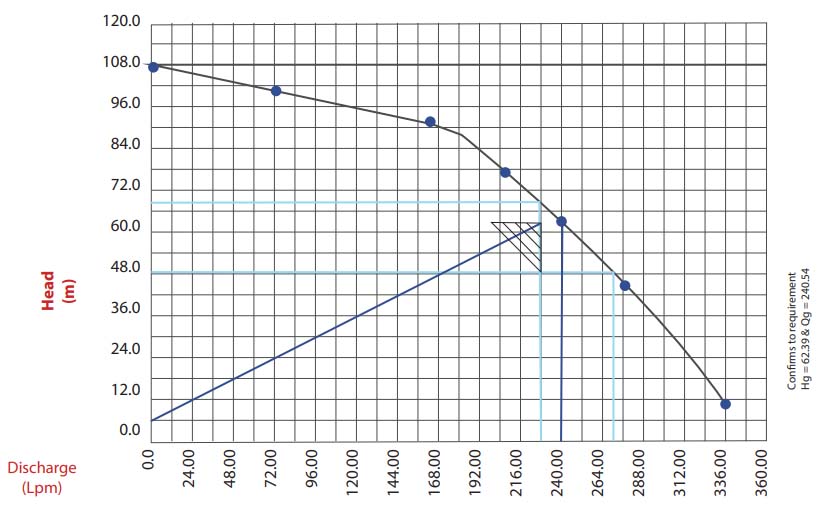

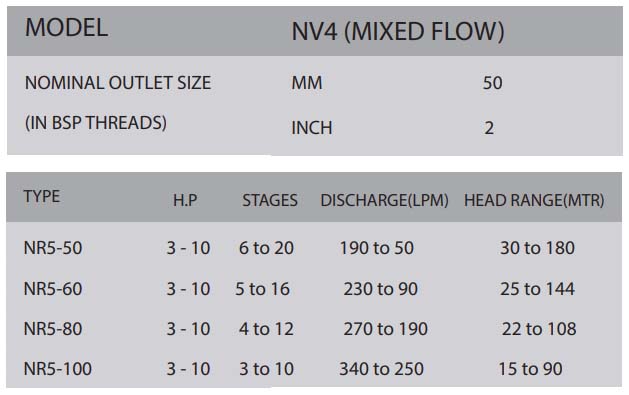

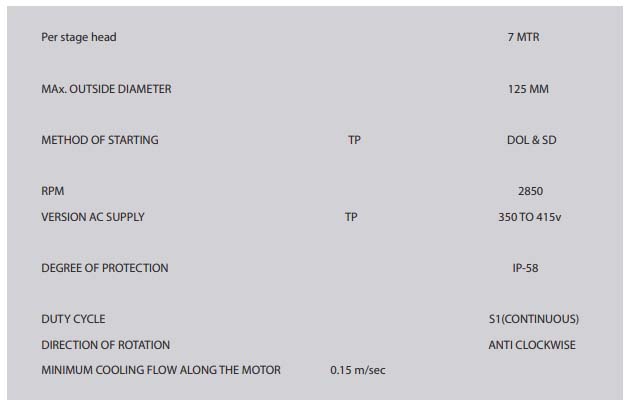

Model Types / Specification


v5-pump-assembly-nr5 v5-pump-assembly-nr5

Product Salient Features


  • Confirm to IS 8034: 2002
  • Energy Efficient Pumpsets
  • Easy to Dismantle and Repair
  • Available from 0.5 to 5 HP in T.P
  • Wide Operating Voltage Range
  • Enhanced Durability
  • Trouble-free Operation
  • Less Power Consumption
  • Applications: Domestic, Industrial, Sprinklers, Agriculture, High Rise Buildings, Drip Irrigation
  • Special Options


  • Also available in NEMA standard.

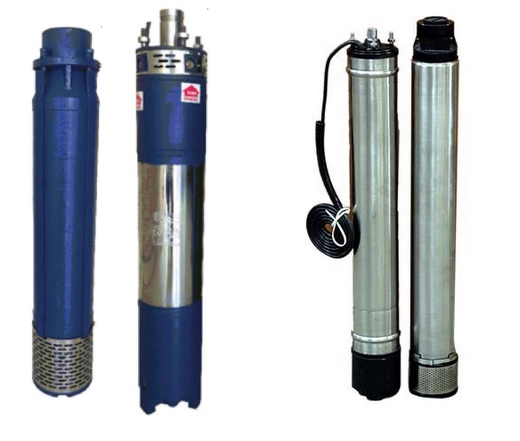

  • Product Images
