V5 PUMP ASSEMBLY (NM5)

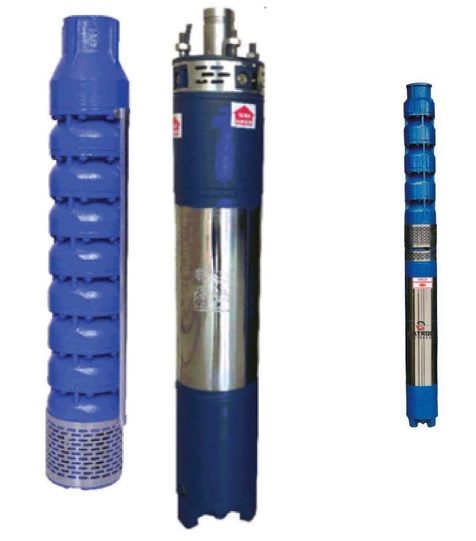

Product Description

Maffs Pumps pvt ltd has a wide range of Agriculture Submersible Pumps ,that suit various kinds of user requirements. The high lights of our pumps are compact ability, easy and quick installation and low maintenance. Our special features includes continues operation, greater efficiencies extremely quiet operation and high working pressure.

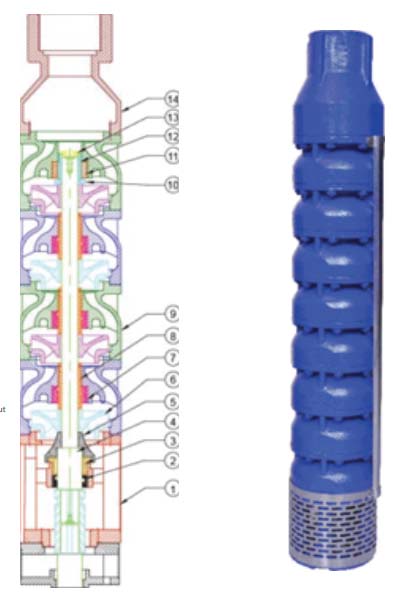

Parts with Material

Sr. No.	Part's Name	Material
1	Intermediate Piece	C.I (FG-200)
2	Intermediate Bush	Nittrile
3	Intermediate Bush	L.T.B- 4
4	Pump Shaft	S.S-410
5	Sand Guard	C.I (FG-200)
6	Upper Sleeve	S.S-410
7	Impeller	S.S-410
8	Rubber Bush ( For Bowl )	Nitrile
9	Sleeve	s.s- 410
10	Stage Casing	C.I (FG-200)
11	Top Washer	S.S-410
12	Top Bush	L.T.B- 4
13	Top Sleeve	S.S- 410
14	Check Nut	S.S- 410
15	N.R.V. Body	C.I (FG-200)

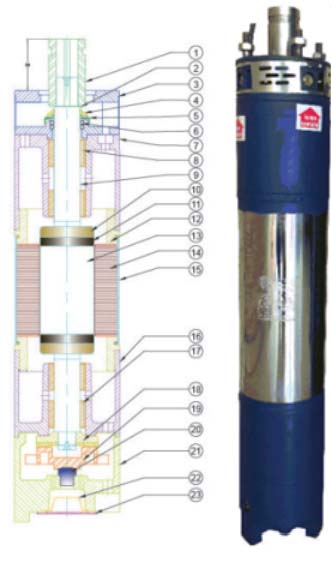

Sr. No.	Part's Name	Material
1	couple	S.S- 410
2	Roror Shaft	S.S- 410
3	Connecng Piece	C.I ( FG-200 )
4	Rubber Seal Cap	Nitrile
5	5.S Cap	S.S- 202
6	Oil Seal	Nitrile & S.S.
7	Upper Brg Housing	C.I ( FG-200 )
8	Bearing Bush	L.T.B- 4
9	Rotor	-----
10	Balance Ring	C.I ( FG-200 )
11	Copper Ring	E.C Grade
12	Stud ring	M.S forged
13	Rotor Stamping	CRNO
14	Stator Stamping	CRNO
15	Stator Tube	S.S- 202 {1% Ni - 14}
16	Lower Brg Housing	C.I ( FG-200 )
17	Lower Brg Bush	L.T.B- 4
18	Thrust Pad	S.S. +Teon
19	Thrust Bearing	C.I. & S.S. {Fix Segment}
20	Rocker Support	S.S- 410
21	Motor Base	C.I ( FG-200 )
22	P..C.D. .Cup	Nitrile
23	Motor Base Cover	C.I ( FG-200 )

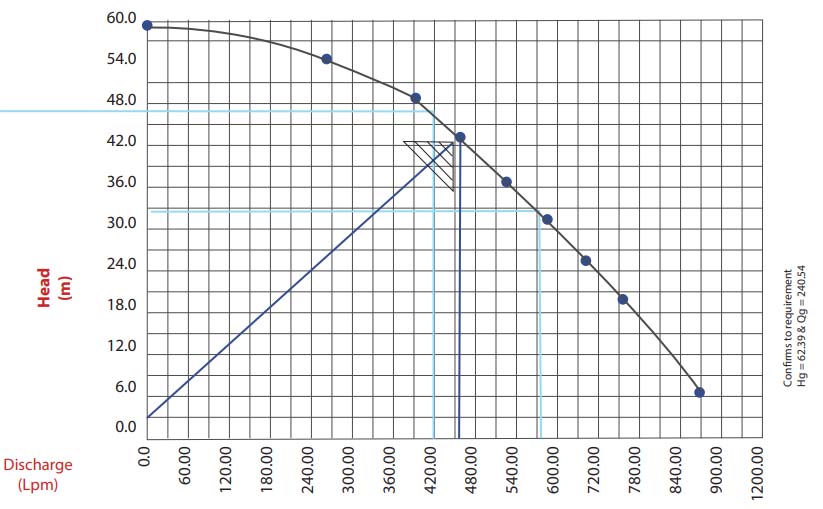

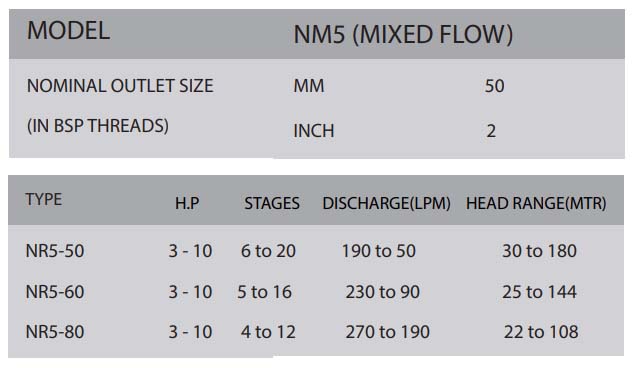

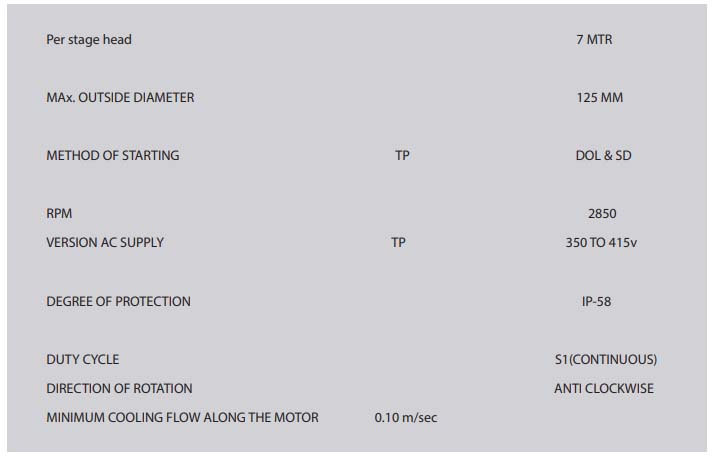

Model Types / Specification

Product Salient Features

Confirm to IS 8034: 2002

Energy Efficient Pumpsets

Easy to Dismantle and Repair

Available from 3 to 5 HP in T.P

Wide Operating Voltage Range

Enhanced Durability

Trouble-free Operation

Less Power Consumption

Applications: Domestic, Industrial, Sprinklers, Agriculture, High Rise Buildings, Drip Irrigation

Special Options

Also available in NEMA standard.
