Product Description

Maffs Pumps pvt ltd has a wide range of Agriculture Submersible Pumps ,that suit various kinds of user requirements. The high lights of our pumps are compact ability, easy and quick installation and low maintenance. Our special features includes continues operation, greater efficiencies extremely quiet operation and high working pressure.


Parts with Material

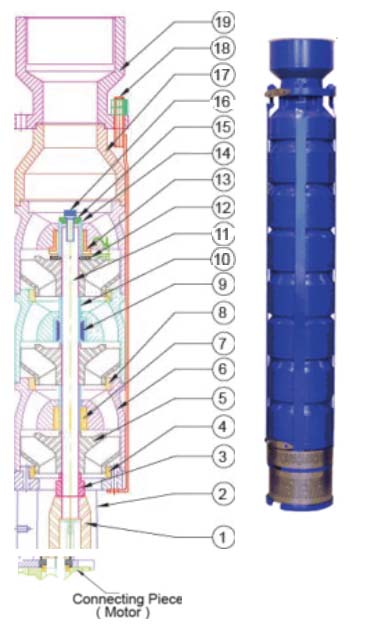

v4-pump-assembly-nm4
Sr. No. Part's Name Material
1 Couple  S.S-410
2 Intermediate Piece C.I (FG-200)
3 Distance Spacer S.S-410
4 Neckring White Teon
5 lmpeller S.S- 410
6 Stage Casing C I ( FG-200)
7 Bearing Bush S.S-410
8 Neckring Nittrile Rubber
9 Rubber Bearing Bush Nittrile Rubber
10 Upper Sleeve s.s- 410
11 Pump Shaft S.S-410
12 Counter Washer S.S-410
13 Counter Bearing Bush L.T.B- 4
14 Top Sleeve S.S- 410
15 Top Washer S.S- 410
16 Allen Baut S.S- 410
17 N.R.V Joint C.I ( FG-200 )
18 Clamping Stud M.S.
19 N.R.V Body C.I ( FG-200 )

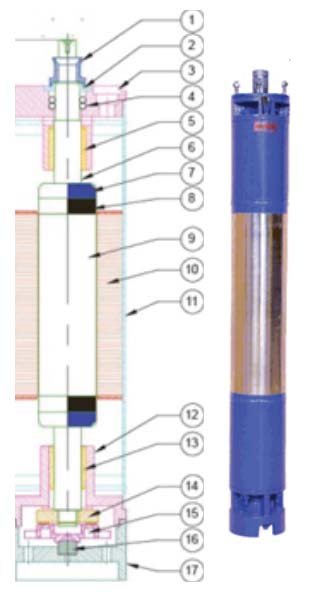

v4-pump-assembly-nm4
Sr. No. Part's Name Material
1 rubber seal cap  nitrile
2 S.S cap S.S- 410
3 upper brg housing C.I ( FG-200 )
4 oil seal Nitrile & S.S
5 upper bearing bush L.T B- 4
6 rotor
7 balance ring C.I ( FG-200 )
8 alluminium (dia cast) E.C Grade
9 rotor stamping CRNO
10 stator Stamping  CRNO
11 Stator Tube S.S- 202 ( 1% Ni- J4 )
12 Lower Brg Housing C.I ( FG-200 )
13 Lower Brg Bush L.T.B- 4
14 Thrust Pad S.S + Teon
15 Thrust Bearing C.i & S.S ( Fix Segment }
16 Rocker Support S.S- 410
17 Motor Base C.I ( FG-200 )

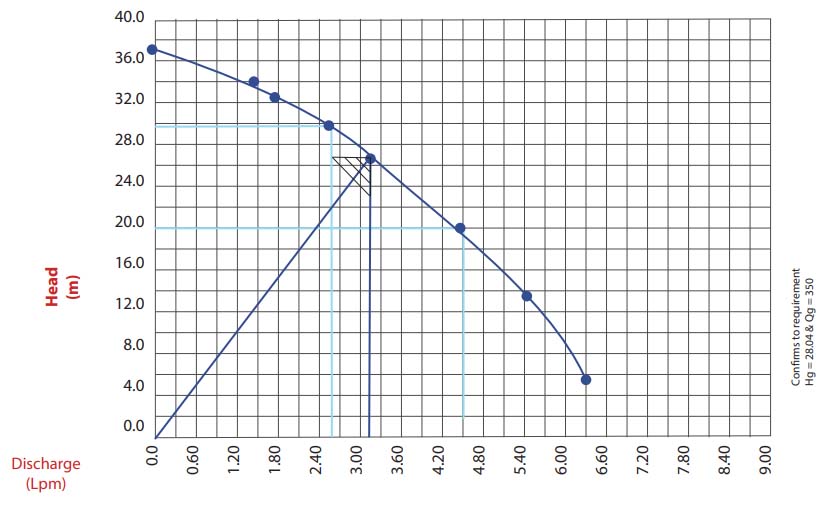

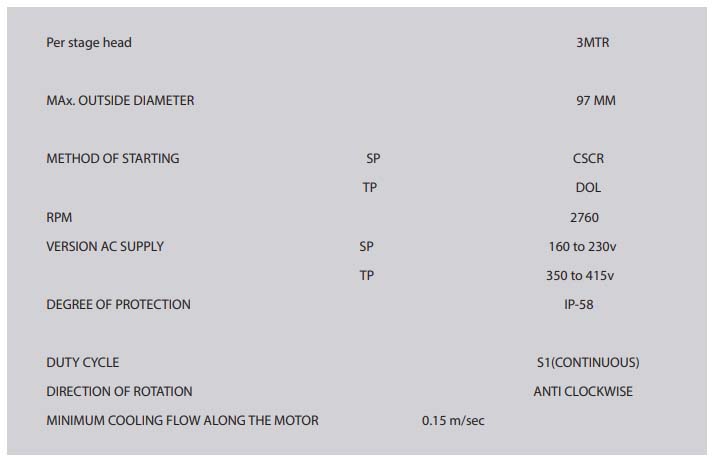

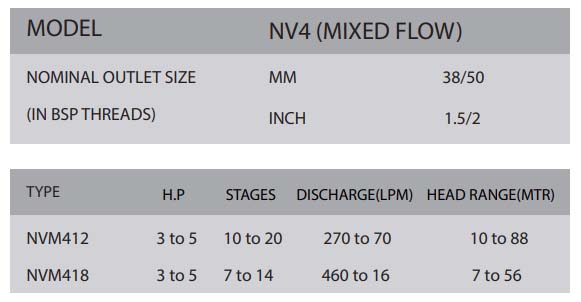

Model Types / Specification


v4-pump-assembly-nm4 v4-pump-assembly-nm4

Product Salient Features


  • Confirm to IS 8034: 2002
  • Energy Efficient Pumpsets
  • Easy to Dismantle and Repair
  • Available from 3 to 5 HP in S.P and T.P
  • Wide Operating Voltage Range
  • Enhanced Durability
  • Trouble-free Operation
  • Less Power Consumption
  • Applications: Domestic, Industrial, Sprinklers, Agriculture, High Rise Buildings, Drip Irrigation
  • Special Options


  • Also available in NEMA standard.
  • Complete SS construction for seawater.

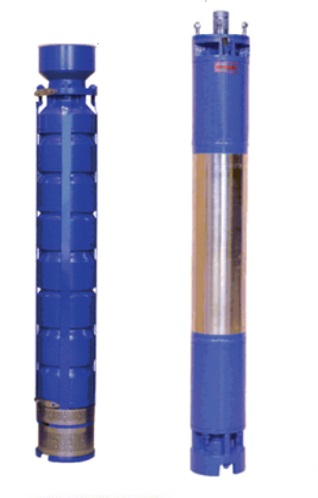

  • Product Images
