MONO SQ TYPE 3.0 HP TO 5.0 HP
Product Description
We are an acclaimed name engaged in offering our precious clients a superior quality range of domestic MONO SQ TYPE 3.0 HP TO 5.0 HP Pumps. This pump set is used in various irrigation purposes in commercial complexes for water supply & Boiler feed water treatment pump, high rise buildings and hotels. Our offered pump set is manufactured by our professionals using high grade raw material and advanced technology in compliance with the international quality standards. In addition to this, our provided pump set undergoes various tests under the supervision of quality controllers to ensure its flawlessness at the clients'' end. Clients can avail this domestic MONO SQ TYPE 3.0 HP TO 5.0 HP pump set from us at market leading rates.

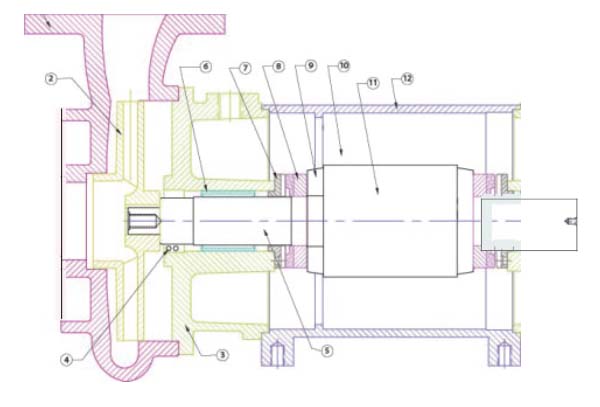

Parts with Material
| Sr. No | Part's Name | Material |
| 1 | Chamber | C.I ( FG-200 ) |
| 2 | Impeller | C.I ( FG-200 ) |
| 3 | Upper Brg Housing | C.I ( FG-200 ) |
| 4 | Oil Seal | Nitrite & S.S |
| 5 | Rotar Shat | S.S - 410 |
| 6 | Bearing Bush | L.T.8- 4 |
| 7 | Counter Pad | S.S - 410 |
| 8 | Thrust Pad | C.I + Te on |
| 9 | Rotar | Alu/Copper |
| 10 | Stator Stamping | CRNO |
| 11 | Rotor Stamping | CRNO |
| 12 | Stator Tube | C.I ( FG-200 ) |
| 13 | Lower Brg Housing | C.I ( FG-200 ) |
Model Types / Specification
| MODEL | NHZ | |||
| TYPE | H.P | SUCTION/DELIVERY SIZE (MM) | DISCHARGE(LPM) | HEAD RANGE(MTR) |
| NHZ8HH-30 | 3 | 65*50 | 590 to 630 | 5 to 22 |
| NHZ8LH-40 | 3 | 65*65 | 766 t0 192 | 5 to 26 |
| NHZ8HH-50 | 3 | 65*50 | 661 to 304 | 5 to 38 |
| NHZ8LH-60 | 3 | 65*65 | 1024 to 496 | 5 to 30 |
| METHOD OF STARTING | SP | CSCR | ||
| RPM | 2850 | |||
Product Salient Features
Special Options

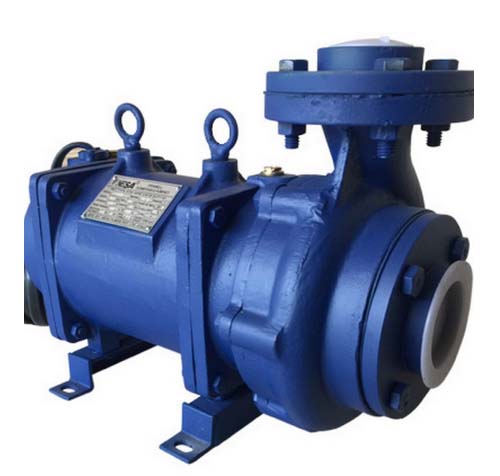

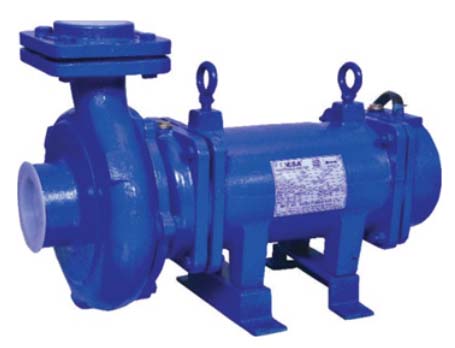

Product Images

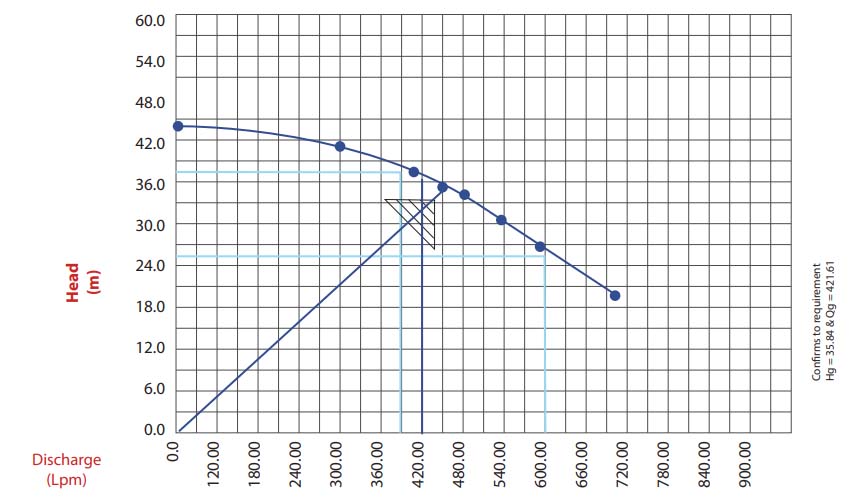

Head & Discharge Diagram
