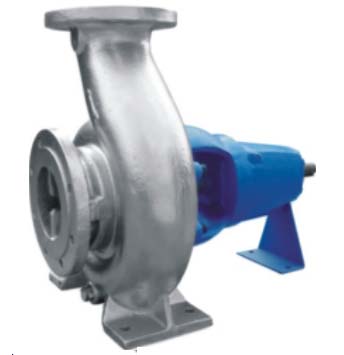

MEC Series

Application

Type of indusrtries like Chemical, textile, Fertilizer, Paper & Pulp, Petrochemical, Food Processing, Sugar, Starch, Refinery, Powder Plant, Dairy, Pharmaceutical and Bulk Drugs, Oil Extraction etc

Casing

High efficiency volute type. Suction and discharge nozzle as well as the supporting feet are cast integral with the casing.

Impeller

Enclosed type and accurately balanced dynamically. Hydraulically balanced by back vanes and for large impellers by balancing holes

Shaft

Three shaft units cover complete range of MEC pumps. Made of high tensile steel and accurately ground all over.

Stuffing Box

Available with suitable gland packing.

Mechanical seal arrangement available upon request.

Material of Construction

Impeller : Cast Iron / SS - 316, Cast Steel / Bronze etc.

Pump Casting : Cast Iron / SS - 316, Cast Steel / Bronze etc.

Shaft / Sleeve : Cast Iron / SS - 316, Cast Steel / Bronze etc.

Sealing : Mechanical Seal / Gland Packing.

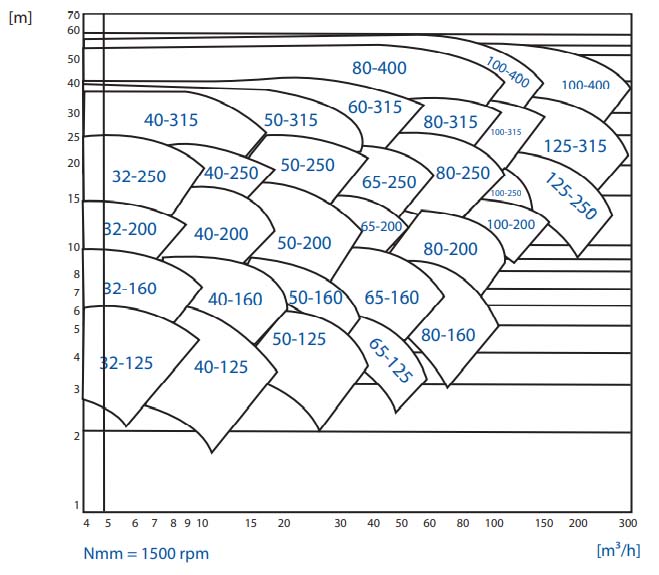

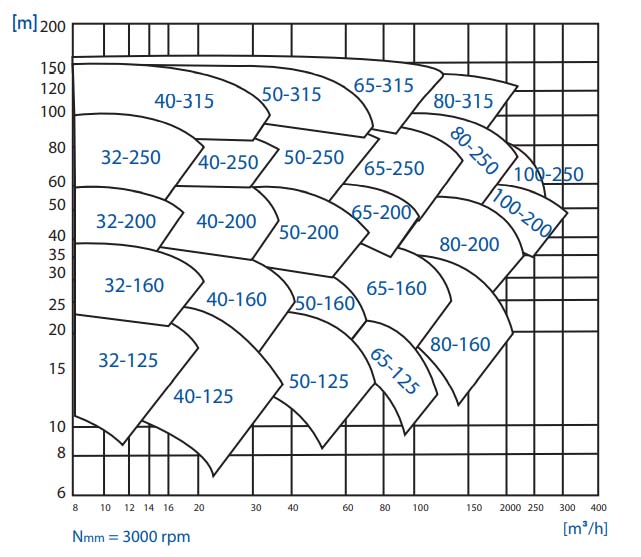

Range

Capacity : 400 mᶟ /Hr

Head : Up to 100 Mt.

Temperature : Up to 350° C
