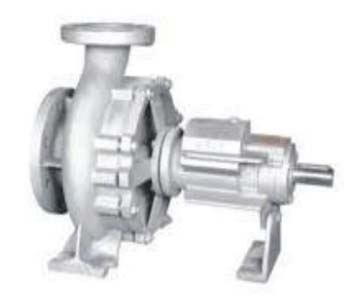

FTP Series

Air Cooled Canned Motor Pumps Design for High. Temperature application isolated Liquid in motor Section of the unit for Hot process Fluid in the pump casing with a series pressure pots located in the front bearing housing or pump casing adopter

Technical Specification

Head 10 Kg/cm²

Capacity 250 mᶟ/hr

Pump Size 25 mm to 300 mm

Speed Range 1440/ 2900 Rpm

Temp 350°C

Sealing High Temp Sealing Fitted

Pump MOC CS , SS 316

Application

Hot oil Transfer

Food Industries

Boiler Application

Thermic Fluid Application

Hot Water Application

THERMIC FLUID AIR COOLED PUMP
