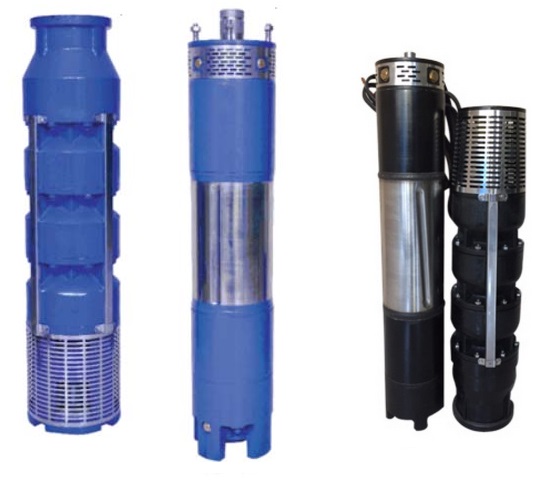

V8 PUMP ASSEMBLY (NM8)

Product Description

Maffs Pumps pvt ltd has a wide range of Agriculture Submersible Pumps ,that suit various kinds of user requirements. The high lights of our pumps are compact ability, easy and quick installation and low maintenance. Our special features includes continues operation, greater efficiencies extremely quiet operation and high working pressure.

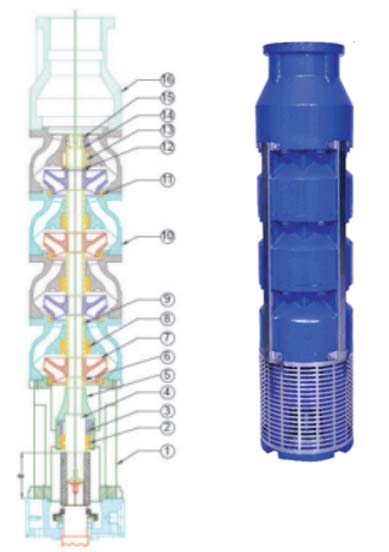

Parts with Material

Sr. No.	Part's Name	Material
1	Intermediate Piece	C.I ( FG-200 )
2	Intermediate Bush	Nitrite Rubber
3	Intermediate Bush	L.T.8- 4
4	Pump Shaft	S.S- 410
5	Hand Guard	C.I ( FG-200 )
6	Upper Sleeve	S.S- 410
7	Impeller	S.S- 410
8	Rubber Bush (For Bowl)	Nitrite
9	Sleeve	S.S - 410
10	Stage Casing	C.I ( FG-200 )
11	Neck Ring	Nitrite Rubber
12	Top Washer	S.S- 410
13	Top Bush	L.T.8- 4
14	Top Sleeve	S.S- 410
15	Check Nut	S.S- 410
16	N.R.V Body	C.I ( FG-200 )

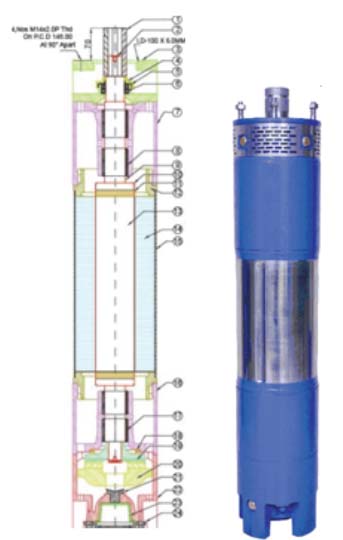

Sr. No.	Part's Name	Material
1	Couple	S.S-410
2	Rotor Shaft	S.S-431
3	Connecting Piece	C.I (FG-200)
4	Rubber 5eaI Cap	Nittrile Rubber
5	S.S Cap	S.S-202
6	Oil seal	Nittrile Rubber + S.S.
7	Upper Brg Housing	C.I (FG-200)
8	Upper Brg Bush	L.T.B - 4 + Nittrile Rubber
9	Rotor	-----
10	Balance Ring	Brass
11	Copper Ring	E.C Grade
12	Stud Ring	M.S. Forged
13	Rotor Stamping	CRNO
14	Stator Stamping	CRNO
15	Stator Tube	S.S-202 (1% Ni-14)
16	Lower Brg Housing	C.I (F.G-200)
17	Lower Brg Bush	L.T.B - 4 + Nittrile Rubber
18	Counter Bearing	Hylam Pad
19	Thrust Pad	S.S. + Carbon
20	Thrust Bearing	Six Segment Carbon Pad
21	Rocker Support	S.S-410
22	Motor Base	C.I (F.G-200)
23	P.C.D. Cup	Nittrile Rubber
24	Moror Base Cover	C.I (F.G-200)

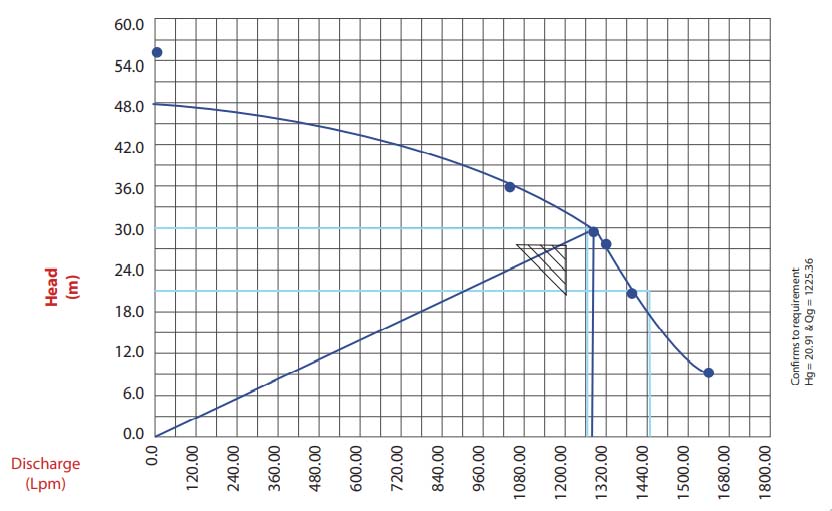

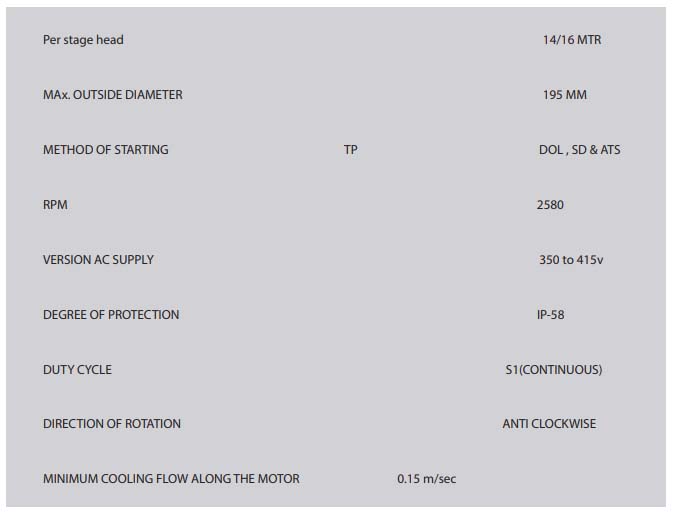

Model Types / Specification

Product Salient Features

Confirm to IS 8034: 2002

Energy Efficient Pumpsets

Easy to Dismantle and Repair

Available from 10 to 50 HP in S.P and T.P

Wide Operating Voltage Range

Enhanced Durability

Trouble-free Operation

Less Power Consumption

Applications: Domestic, Industrial, Sprinklers, Agriculture, High Rise Buildings, Drip Irrigation

Special Options

Also available in NEMA standard.
