MONOSET 0.5 HP TO 3 HP
Product Description
We are an acclaimed name engaged in offering our precious clients a superior quality range of domestic MONOSET 0.5 HP TO 3 HP Pumps. This pump set is used in various irrigation purposes in commercial complexes for water supply & Boiler feed water treatment pump, high rise buildings and hotels. Our offered pump set is manufactured by our professionals using high grade raw material and advanced technology in compliance with the international quality standards. In addition to this, our provided pump set undergoes various tests under the supervision of quality controllers to ensure its flawlessness at the clients'' end. Clients can avail this domestic MONOSET 0.5 HP TO 3 HP pump set from us at market leading rates.

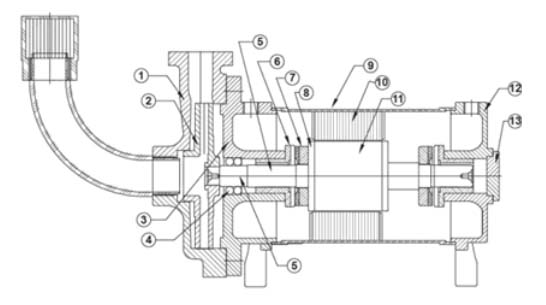

Parts with Material
| Sr. No | Part's Name | Material |
| 1 | Chamber | C.I ( FG-200 ) |
| 2 | Impeller | C.I ( FG-200 ) |
| 3 | Upper Brg Housing | C.I ( FG-200 ) |
| 4 | Oil Seal | Nitrite & S.S |
| 5 | Rotar | ------ |
| 6 | Counter Bearing Bush | L.T.8- 4 |
| 7 | Thrust Pad | C.I + Te on |
| 8 | Copper Ring | E.C Grade |
| 9 | Stator Tube | S.S - 202 (1% Ni- 14) |
| 10 | Stator Stamping | CRNO |
| 11 | Rotor Stamping | CRNO |
| 12 | Lower 8rg Housing | C.I ( FG-200 ) |
| 13 | Back Cover | C.I ( FG-200 ) |
Model Types / Specification
| MODEL | NHZ | |||
| TYPE | H.P | SUCTION/DELIVERY SIZE (MM) | DISCHARGE(LPM) | HEAD RANGE(MTR) |
| NHZ 0.5 | 0.5 | 25*25 | 195 to 20 | 6 to 21 |
| NHZ 1.0 | 1 | 25*25 | 245 t0 40 | 21 to 30 |
| NHZ 1.5 | 1.5 | 38*38 | 290 to 72 | 9 to 30 |
| NHZ 2.0 | 2 | 50*50 | 354 to 80 | 9 to 32 |
| NHZ 3.0 | 3 | 65*50 | 650 to 100 | 9 to 32 |
| METHOD OF STARTING | SP | CSCR | ||
| TP | DOL | |||
| RPM | 2800 | |||
Product Salient Features
Special Options

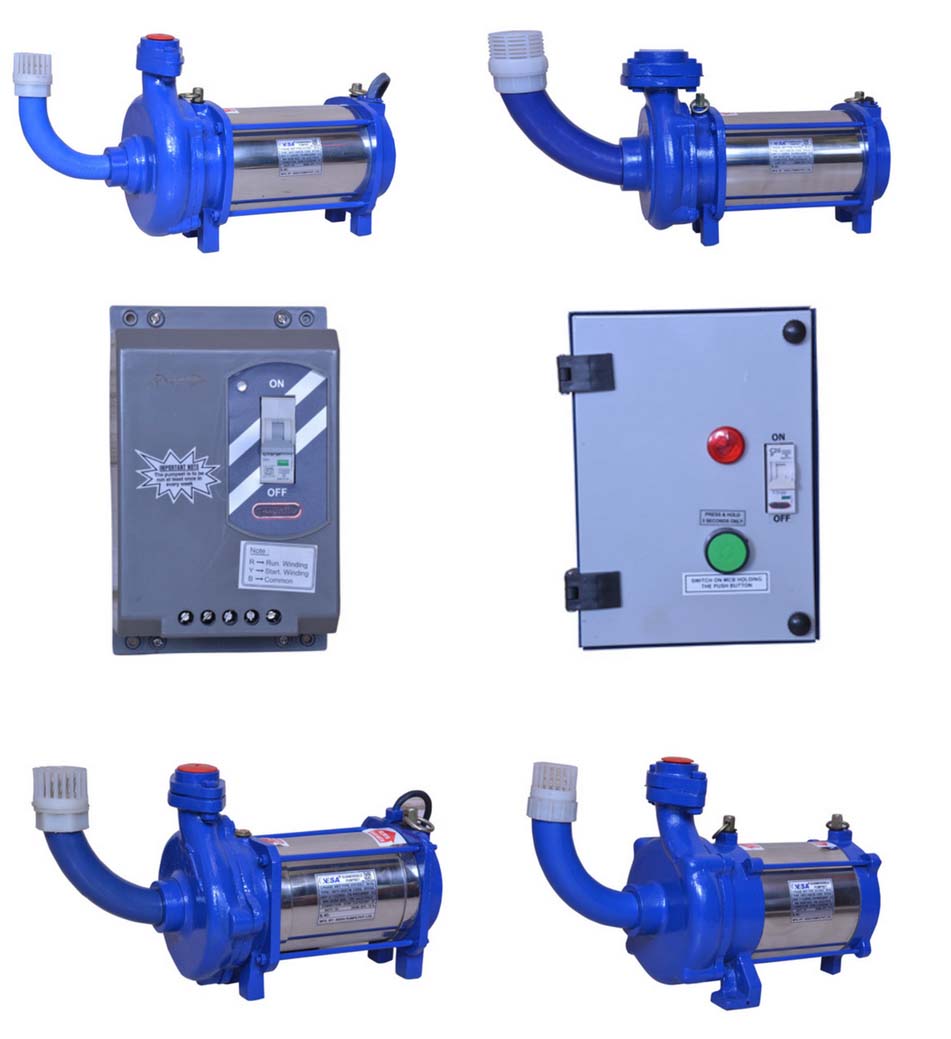

Product Images

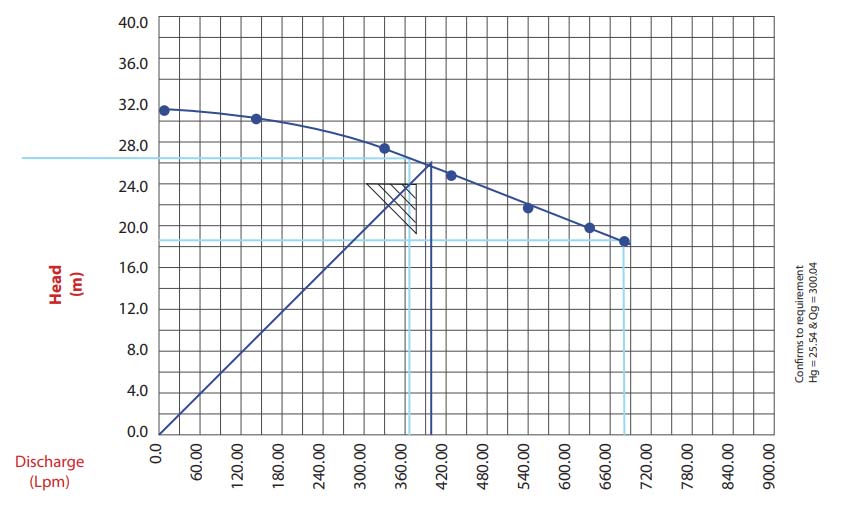

Head & Discharge Diagram
